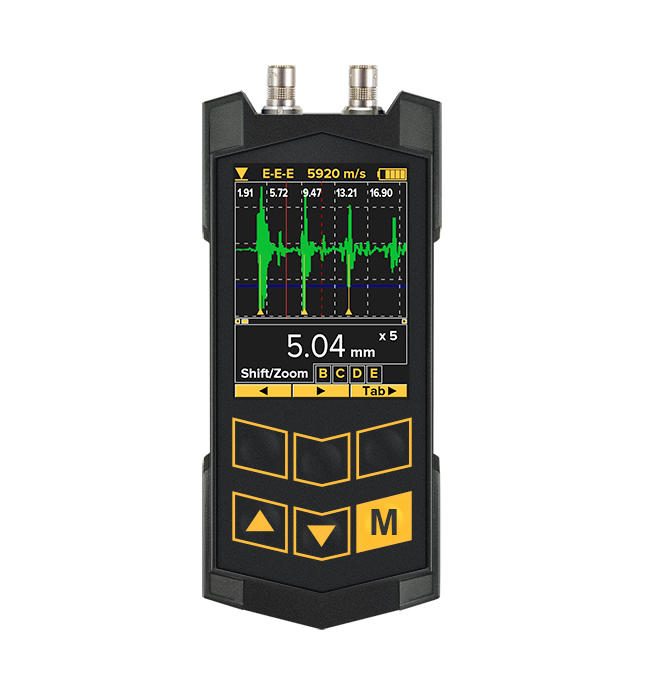

ADVANCE ULTRASONIC THICKNESS GAUGE B6-C

The metal thickness gauge is used for thickness measurement of products from metals and their alloys, thickness measurement under protective coatings, thickness measurement of non-metallic products (plastic, ceramics, and others), which allow the use of ultrasonic inspection methods.

Category:
Description

Description

Purpose

Thickness measurement of products from metals and their alloys, thickness measurement under protective coatings, and thickness measurement of non-metallic products (plastic, ceramics, and others), which allow the use of ultrasonic inspection methods.

Features

  •  colour display (TFT 2.4” 320 × 240);
  •  possibility of graphic display of ECHO signal in A-scan mode;
  •  B-scan;
  •  possibility of metal thickness measurement under coating (in ECHO-ECHO mode and PULSE-ECHO-COATING mode);
  •  possibility of coating thickness measurement (in PULSE-ECHO-COATING mode);
  •  automatic probe recognition.

Basic technical characteristics

  • range of measured thicknesses (for steel)* Т, mm: with dual transducers: 0.5–300; with direct transducer (with delay line): 0.25–10 for steel; with specialized dual transducers (for measurements under protective coatings with thickness** up to 2.0 mm): 0.25–100;
  •  speed of ultrasound propagation, m/s: 1000–9999;
  •  measurement resolution, mm: 0.1; 0.01;
  •  measurement accuracy, mm: ±(0,005T + 0,05) in range of 0,25 to 10,0; ±(0,01T + 0,1) in range of 10,0 to 300,0;
  •  overall dimensions, mm: 120 × 57 × 20;
  •  power supply — LiPo rechargeable battery, V: 3.7;
  •  range of operating temperatures for devices (basic): –20…+50 °C;
  •  continuous operating time, h: 8;
  •  device weight no more than, g: 150.
Probes

Probes

Probes for thickness gauge B6-C

Dual element probe 5A10

Purpose

Measurement of thickness of walls of metal tanks, containers, pipes of big diameters.

Basic technical characteristics

  • operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1.0 to 200.0;
  •  through paint testing (only for flat objects), (max thickness of paint ≤0,5 mm);
  •  dimensions of contact surface, mm, Ø10;
  •  overall dimensions, mm, Ø18 x 26;
  •  operating temperature range: from -10° to +60 °C.

Particulars

Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.

Dual element probe 10A6

Purpose

Measurement of thickness of pipes, curved areas of containers with small radius.

Basic technical characteristics

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0.6 to 20;
  •  dimensions of contact surface, mm, Ø6;
  •  overall dimensions, mm, Ø14 x 26;
  •  operating temperature range: from -10° to +60 °C.

Particulars

Utilization of new synthetic materials provides low wear and good interfacing with rough surfaces.

Dual element probe 2.5A12

Purpose

Measurement of residual wall thickness of metallic and non-metallic products during manufacture, operation and repare.

Basic technical characteristics

  •  operation frequency, MHz, 2.5;
  •  thickness range (for steel), mm, from 3.0 to 200.0;
  •  dimensions of contact surface, mm, Ø15;
  •  overall dimensions, mm, Ø22 x 45;
  •  operating temperature range: from -10° to +60 °C.

Particulars

Good acoustic contact on rough and very rusted surface.

Small-sized dual element probe 10A4

Purpose

Measurement of wall thickness of pipes, thin metal plates.

Basic technical characteristics

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0.5 to 10;
  •  dimensions of contact surface, mm, Ø4.5;
  •  overall dimensions, mm, Ø9 x 11;
  •  operating temperature range: from -10° to +60 °C.

Particulars

High locality, possibility of testing in hard-to-access locations (longerons, pipes with small diameter, etc).

Small-sized dual element probe 10A4

Purpose

Measurement of wall thickness of pipes, thin metal plates.

Basic technical characteristics

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0.5 to 10;
  •  dimensions of contact surface, mm, Ø4.5;
  •  overall dimensions, mm, Ø9 x 11;
  •  operating temperature range: from -10° to +60 °C.

Particulars

High locality, possibility of testing in hard-to-access locations (longerons, pipes with small diameter, etc).

Dual element high-temperature probe 5T12

Purpose

Intended for testing the thickness of hot metal parts. Used with thickness meter B6-С.

Basic technical characteristics

  • operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1.0 to 100.0;
  •  dimensions of contact surface, mm, Ø14;
  •  overall dimensions, mm, Ø26 x 48;
  •  operating temperature range: from -10° to +250 °C.

THROUGH PAINT PROBES

Dual element probe 5E10

Purpose

Measuring of thickness of walls of metal tanks, conteiners, pipes of big diameters, also to read through and ignore coatings.

Basic technical characteristics

  •  operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1.5 to 300.0 (in Pulse-Echo and Pulse-Echo-Coating); from 1.0 to 20.0 (in Echo-Echo mode);
  •  coating up to 2.0 mm (in Echo-Echo mode); coatings up to 1.0 mm (Pulse-Echo-Coating mode);
  •  dimensions of contact surface, mm, Ø12;
  •  overall dimensions, mm, Ø25 x 47;
  •  operating temperature range: from -10° to +60 °C.

Dual element probe 10E6

Purpose

Measurement of thickness of pipes, curved areas of containers with small radius, also to read through and ignore coatings.

Basic technical characteristics

  •  operation frequency, MHz, 10;
  •  thickness range (for steel), mm, from 0.6 to 50.0 (in Pulse-Echo-Mode); from 0.6 to 10.0 (in Echo-Echo mode, coatings up to 1.0 mm); from 0.6 to 25.0 (in Pulse-Echo-Coating mode, coatings up to 0.5 mm)
  •  dimensions of contact surface, mm, Ø8;
  •  overall dimensions, mm, Ø25 x 47;
  •  operating temperature range: from -10° to +60 °C.

Particulars

Good acoustic contact on rough and very rusted surface.



Delay line probe 15P6DL

Purpose

It’s recommends for thickness measurement of very thin materials.

Basic technical characteristics

  •  operation frequency, MHz, 15;
  •  thickness range (for steel), mm, from 0.25 to 10.0;
  •  thirough paint range, mm, from 0.25 to 10.0 (up to 2 mm coating);
  •  dimensions of contact surface, mm, Ø7.4;
  •  overall dimensions, mm, Ø14 x 25.5.

Particulars

High locality, possibility of testing in hard-to-access locations (longerons, pipes with small diameter, etc).

SINGLE ELEMENT PROBES WITH PROTECTIVE MEMBRANE (FOR ECHO-ECHO MODE)

P111-S5C

Purpose

Measurement of residual wall thickness of metallic and non-metallic products for use with the gauge in Echo-Echo mode or Multiple-Echo mode to read through and ignore coatings.

Basic technical characteristics

  •  operation frequency, MHz, 5;
  •  thickness range (for steel), mm, from 1.0 to 200.0;
  •  dimensions of contact surface, mm, Ø16;
  •  overall dimensions, mm, Ø26 x 46;
  •  operating temperature range: from -10° to +60 °C;
  •  protective membrane: polyurethane membrane.

Particulars

Good acoustic contact on rough and very rusted surfaces. Through coatings measuring.

P111-S2C

Purpose

Measurement of residual wall thickness of metallic and non-metallic products for use with the gauge in Echo-Echo mode to read through and ignore coatings.

Basic technical characteristics

  •  operation frequency, MHz, 2.25;
  •  thickness range (for steel), mm, from 2.0 to 150.0;
  •  dimensions of contact surface, mm, Ø16;
  •  overall dimensions, mm, Ø26 x 46;
  •  operating temperature range: from -10° to +60 °C;
  •  protective membrane: polyurethane membrane.

Particulars

Good acoustic contact on rough and very rusted surfaces. Through coatings measuring.
